Ultralow Freezers
Ultra Low Temperature Freezers and Cryogenic Freezers are designed to preserve biological samples at stable temperatures from -86°C down to -150°C. These laboratory freezers from Panasonic Healthcare & NuAire are available in both upright and chest-styles, and come in a variety of sizes to fit all of your research application needs.


VIP® Series

TwinGuard® Series

PRO Series -86°C Freezers

Chest Freezers

VIP® ECO


Panasonic VIP® ultra-low temperature freezers represent the complete combination of refrigeration, control, alarm configuration, monitoring, and accessibility for product safety at -86°C. These ULT freezers feature a patented VIP®PLUS vacuum insulation cabinet construction and insulated inner doors to ensure exceptional temperature uniformity. Well-known for its reliability, energy savings, and performance, the VIP® Series is ideal for material storage in repositories, hospitals, clinics, and medical research facilities.

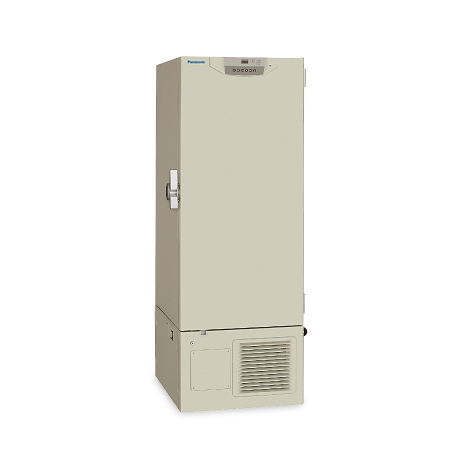

Panasonic model MDF-U33V-PA

Specifications:
  • Temperature Range: -50°C to -86°C
  • Capacity: 11.8 cu. ft. / 333L
  • Purpose built compressors
  • Space saving VIP®PLUS insulation side walls
  • Microprocessor control with digital display
  • Audible and visual alarms
  • Door(s): 1 exterior and 2 insulated inner doors
  • 3 Shelves (4 compartments)
  • Exterior Dimensions: 73.2"H x 26.4"W x 34.1"D
  • Interior Dimensions: 44.9"H x 19.3"W x 23.6"D
  • Casters
  • Voltage: 115V, 60 Hz
  • Storage Capacity
    • 216 standard 2" boxes (21,600 x 2ml vials)
    • 144 standard 3" boxes (14,400 x 3ml vials)

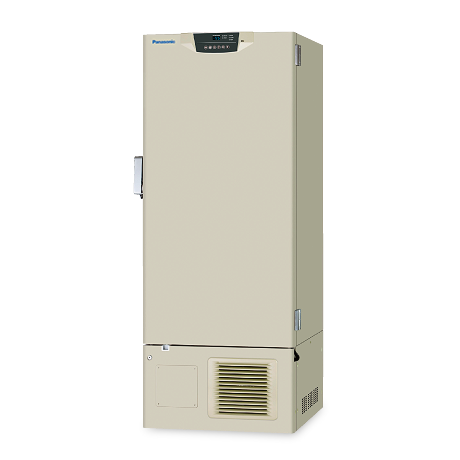

Panasonic model MDF-U53VA-PA

Specifications:
  • Temperature Range: -50°C to -86°C
  • Capacity: 18.3 cu. ft. / 519L
  • Purpose built compressors
  • Space saving VIP®PLUS insulation side walls
  • Microprocessor control with digital display
  • Audible and visual alarms
  • Door(s): 1 exterior and 2 insulated inner doors
  • 3 Shelves (4 compartments)
  • Exterior Dimensions: 78.3"H x 30.3"W x 34.3"D
  • Interior Dimensions: 54.3"H x 24.8"W x 23.6"D
  • Casters
  • Voltage: 115V, 60 Hz
  • Storage Capacity
    • 352 standard 2" boxes (35,200 x 2ml vials)
    • 224 standard 3" boxes (22,400 x 3ml vials)




Panasonic model MDF-U56VC-PA

Specifications:
  • Temperature Range: -50°C to -86°C
  • Capacity: 18.6 cu. ft. / 526L
  • Purpose built compressors
  • Space saving VIP®PLUS insulation side walls
  • Microprocessor control with digital display
  • Audible and visual alarms
  • Door(s): 1 exterior and 2 insulated inner doors
  • 3 Shelves (4 compartments)
  • Exterior Dimensions: 78.3"H x 30.3"W x 34.3"D
  • Interior Dimensions: 55.1"H x 24.8"W x 23.6"D
  • Casters
  • Voltage: 208V/230V, 60 Hz
  • Storage Capacity
    • 384 standard 2" boxes (38,400 x 2ml vials)
    • 256 standard 3" boxes (25,600 x 3ml vials)

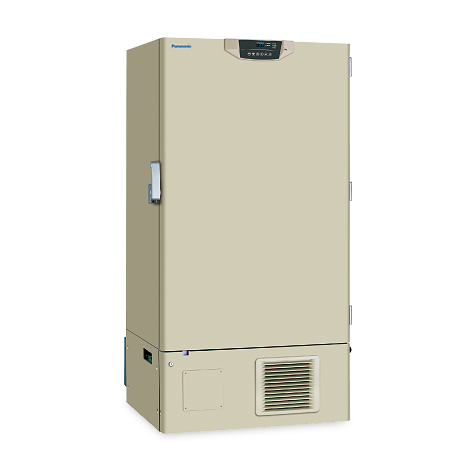

Panasonic model MDF-U76VA-PA

Specifications:
  • Temperature Range: -50°C to -86°C
  • Capacity: 25.7 cu. ft. / 728L
  • Purpose built compressors
  • Space saving VIP®PLUS insulation side walls
  • Microprocessor control with digital display
  • Audible and visual alarms
  • Door(s): 1 exterior and 2 insulated inner doors
  • 3 Shelves (4 compartments)
  • Exterior Dimensions: 78.3"H x 39.8"W x 34.4"D
  • Interior Dimensions: 55.1"H x 34.2"W x 23.6"D
  • Casters
  • Voltage: 115V, 60 Hz
  • Storage Capacity
    • 576 standard 2" boxes (57,600 x 2ml vials)
    • 384 standard 3" boxes (38,400 x 3ml vials)




Panasonic model MDF-U76VC-PA

Specifications:
  • Temperature Range: -50°C to -86°C
  • Capacity: 25.7 cu. ft. / 728L
  • Purpose built compressors
  • Space saving VIP®PLUS insulation side walls
  • Microprocessor control with digital display
  • Audible and visual alarms
  • Door(s): 1 exterior and 2 insulated inner doors
  • 3 Shelves (4 compartments)
  • Exterior Dimensions: 78.3"H x 39.8"W x 34.4"D
  • Interior Dimensions: 55.1"H x 34.2"W x 23.6"D
  • Casters
  • Voltage: 208V/230V, 60 Hz
  • Storage Capacity
    • 576 standard 2" boxes (57,600 x 2ml vials)
    • 384 standard 3" boxes (38,400 x 3ml vials)





The Panasonic TwinGuard® Series satisfies an industry demand for safe, long-term storage for the most high-valued materials. Two, independent refrigeration systems offer a circle of protection unmatched in the marketplace. Developed for use with conventional inventory racks and boxes, the TwinGuard® Series is ideal for stem cell storage, embryo storage or acting as an embryo freezer, cell lines storage, and other rare specimens.

Panasonic model MDF-U500VXC-PA

Specifications:
  • Temperature Range: -50°C to -86°C
  • Capacity: 18.3 cu. ft. / 519L
  • Two independent refrigeration systems
  • Purpose built compressors
  • Space saving VIP®PLUS insulation side walls
  • LCD touch screen display
  • Audible and visual alarms
  • Door(s): 1 exterior and 2 insulated inner doors
  • 3 Shelves (4 compartments)
  • Exterior Dimensions: 78.3"H x 30.3"W x 34.3"D
  • Interior Dimensions: 54.3"H x 24.8"W x 23.6"D
  • Casters
  • Voltage: 208V/230V, 60 Hz
  • Storage Capacity
    • 216 standard 2" boxes (21,600 x 2ml vials)
    • 144 standard 3" boxes (14,400 x 3ml vials)




Panasonic model MDF-U700VXC-PA

Specifications:
  • Temperature Range: -50°C to -86°C
  • Capacity: 25.7 cu. ft. / 728L
  • Two independent refrigeration systems
  • Purpose built compressors
  • Space saving VIP®PLUS insulation side walls
  • LCD touch screen display
  • Audible and visual alarms
  • Door(s): 1 exterior and 2 insulated inner doors
  • 3 Shelves (4 compartments)
  • Exterior Dimensions: 79.1"H x 39.8"W x 34.3"D
  • Interior Dimensions: 55.1"H x 34.3"W x 23.6"D
  • Casters
  • Voltage: 208V/230V, 60 Hz
  • Storage Capacity
    • 576 standard 2" boxes (57,600 x 2ml vials)
    • 384 standard 3" boxes (38,400 x 3ml vials)





Panasonic PRO series freezers deliver uniform temperatures with increased cooling capacity. The high performance refrigeration system with foam-in-place cabinet insulation maximizes interior temperature uniformity and protects against fluctuating ambient temperatures.

Panasonic model MDF-U5586-SC
Specifications:
  • Temperature Range: -50°C to -86°C
  • Capacity: 17.1 cu. ft. / 483L
  • Purpose built compressors
  • Rigid polyurethane foamed-in place insulation side walls
  • Microprocessor control with digital display
  • Audible and visual alarms
  • Door(s): 1 exterior and 2 insulated inner doors
  • 3 Shelves (4 compartments)
  • Exterior Dimensions: 78.3"H x 35.0"W x 34.3"D
  • Interior Dimensions: 50.4"H x 24.8"W x 23.6"D
  • Casters
  • Voltage: 208V/230V, 60 Hz
  • Storage Capacity
    • 216 standard 2" boxes (21,600 x 2ml vials)
    • 144 standard 3" boxes (14,400 x 3ml vials)




Panasonic model MDF-U7586SC-PA
Specifications:
  • Temperature Range: -50°C to -86°C
  • Capacity: 23.5 cu. ft. / 668L
  • Purpose built compressors
  • Rigid polyurethane foamed-in place insulation side walls
  • Microprocessor control with digital display
  • Audible and visual alarms
  • Door(s): 1 exterior and 2 insulated inner doors
  • 3 Shelves (4 compartments)
  • Exterior Dimensions: 78.3"H x 44.5"W x 34.4"D
  • Interior Dimensions: 50.4"H x 34.3"W x 23.6"D
  • Casters
  • Voltage: 208V/230V, 60 Hz
  • Storage Capacity
    • 480 standard 2" boxes (48,000 x 2ml vials)
    • 384 standard 3" boxes (38,400 x 3ml vials)





Panasonic model MDF-C8V1-PA
Specifications:
  • Temperature Range: -50°C to -86°C
  • Capacity: 3.0 cu. ft. / 84L
  • Purpose built compressors
  • Space saving VIP®PLUS insulation side walls
  • Microprocessor control with digital display
  • Audible and visual alarms
  • Exterior Dimensions: 37.2"H x 21.6"W x 27.0"D
  • Interior Dimensions: 16.7quot;H x 15.9"W x 19.3"D
  • Casters
  • Voltage: 115V, 60 Hz
  • Storage Capacity
    • 42 standard 2" boxes (4,200 x 2ml vials)
    • 30 standard 3" boxes (3,000 x 3ml vials)




Panasonic model MDF-DC700VXC-PA
Specifications:
  • Temperature Range: -50°C to -86°C
  • Capacity: 25.3 cu. ft. / 715L
  • Two independent refrigeration systems
  • Purpose built compressors
  • Space saving VIP®PLUS insulation side walls
  • LCD touch screen display
  • Audible and visual alarms
  • Exterior Dimensions: 42.1"H x 90.6"W x 33.3"D
  • Interior Dimensions: 29.8"H x 58.3"W x 25.2"D
  • Casters
  • Voltage: 208V/230V, 60 Hz
  • Storage Capacity
    • 520 standard 2" boxes (52,000 x 2ml vials)
    • 360 standard 3" boxes (36,000 x 3ml vials)





Panasonic model MDF-DU702VH-PA

Specifications:
  • Temperature Control Range of -50C to -86C
  • An eye-level door mounted color LCD touchscreen
  • Temperature Uniformity of +/- 5C
  • Exterior Dimensions: W 40.6" x D 34.7" x H 78.5"
  • Interior Dimensions: W 34.3" x D 23.6" x H 55.1"
  • Natural (Hydrocarbon) Refrigerants
  • Effective capacity: 729 L (25.7 cu.ft)
  • Voltage: 208-230V/60Hz
  • Storage Capacity: 576 two inch boxes, 384 three inch boxes
