Model Number CellDrop FL

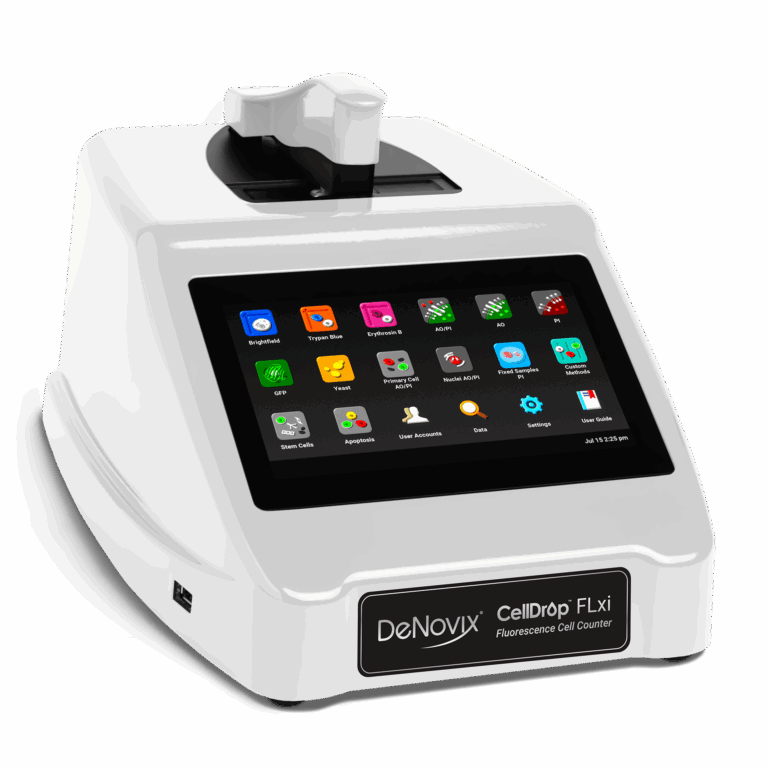

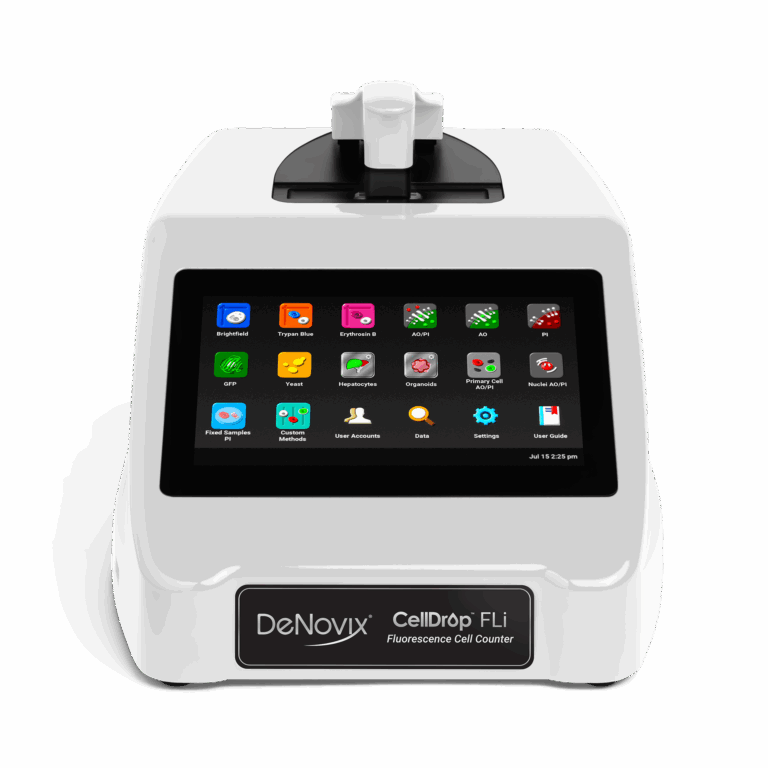

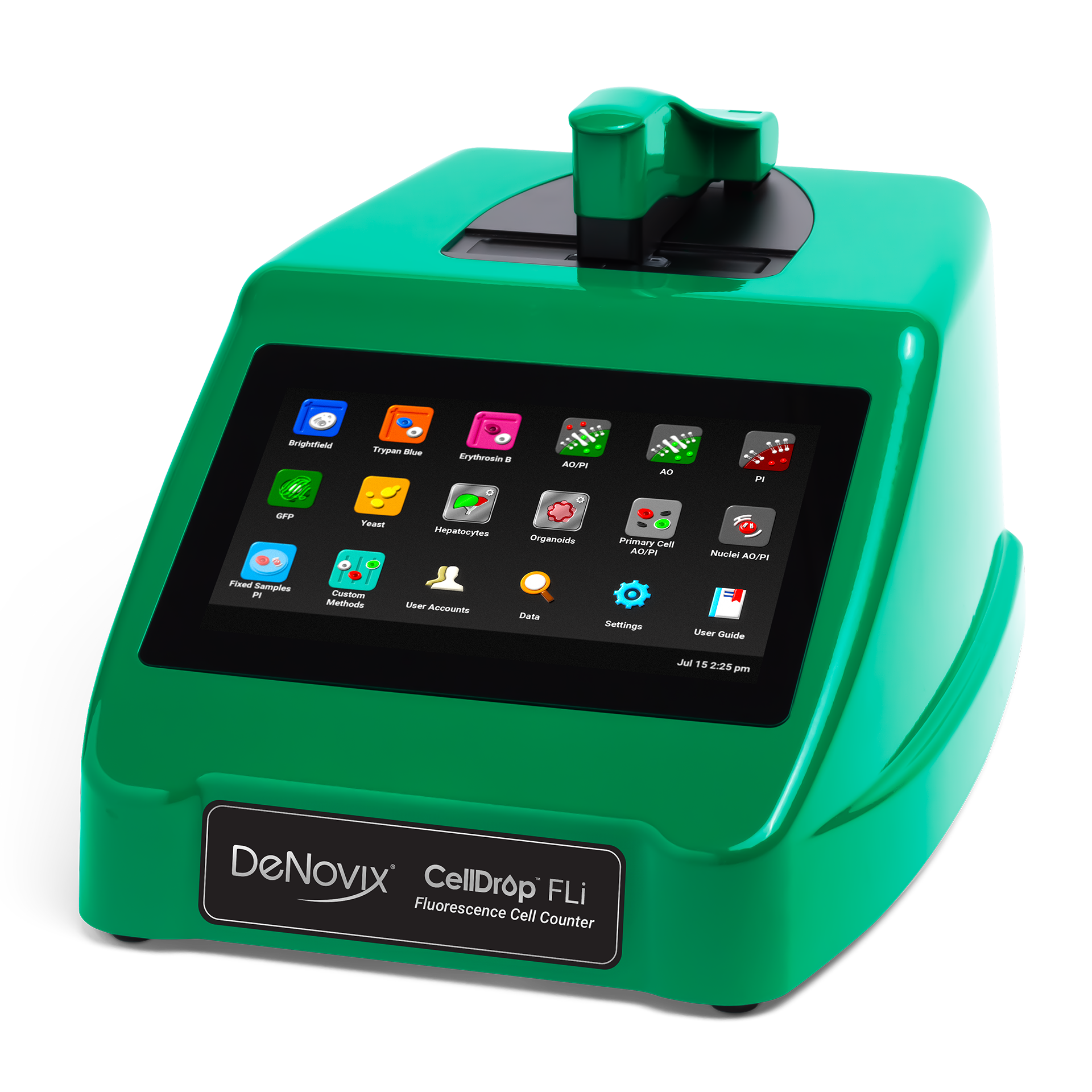

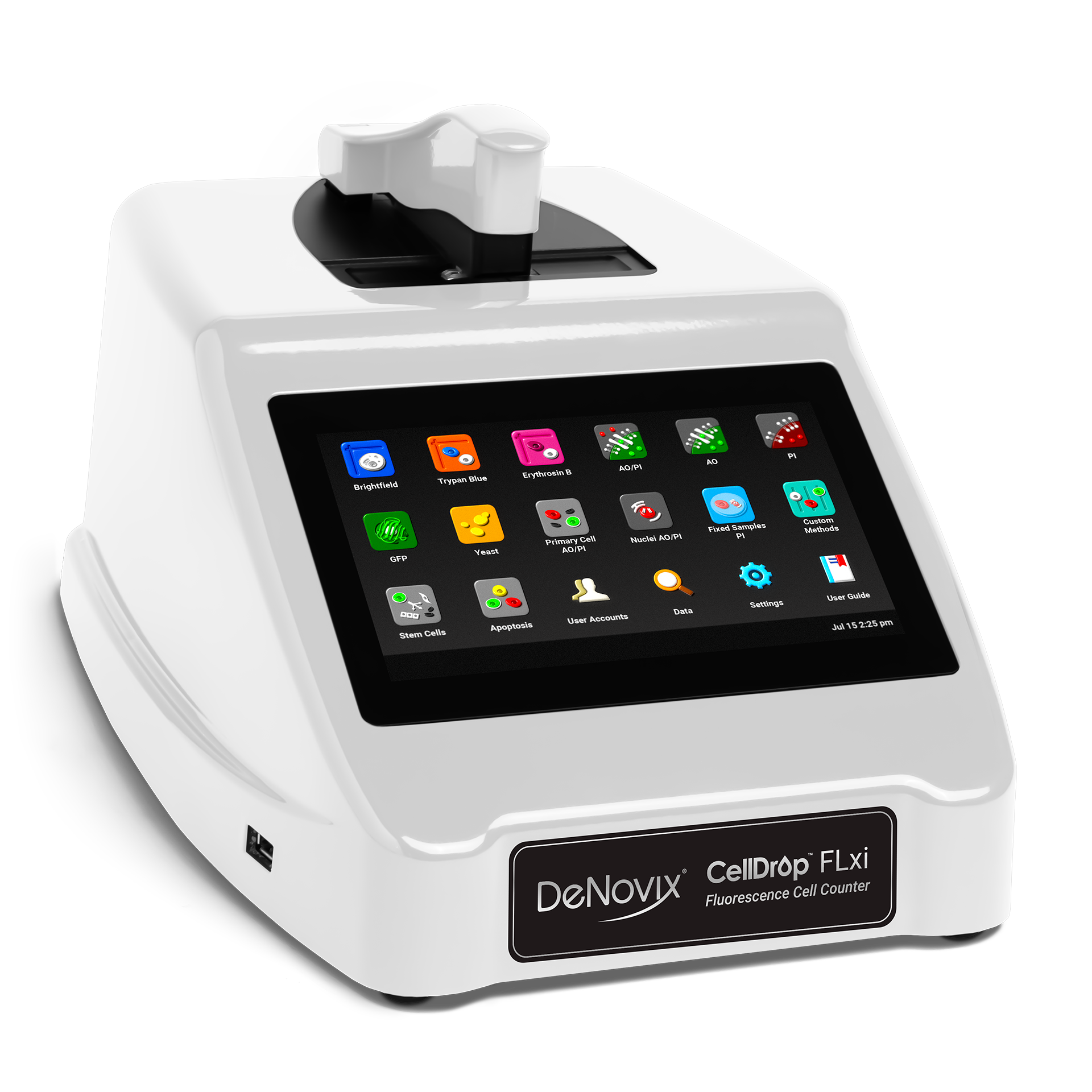

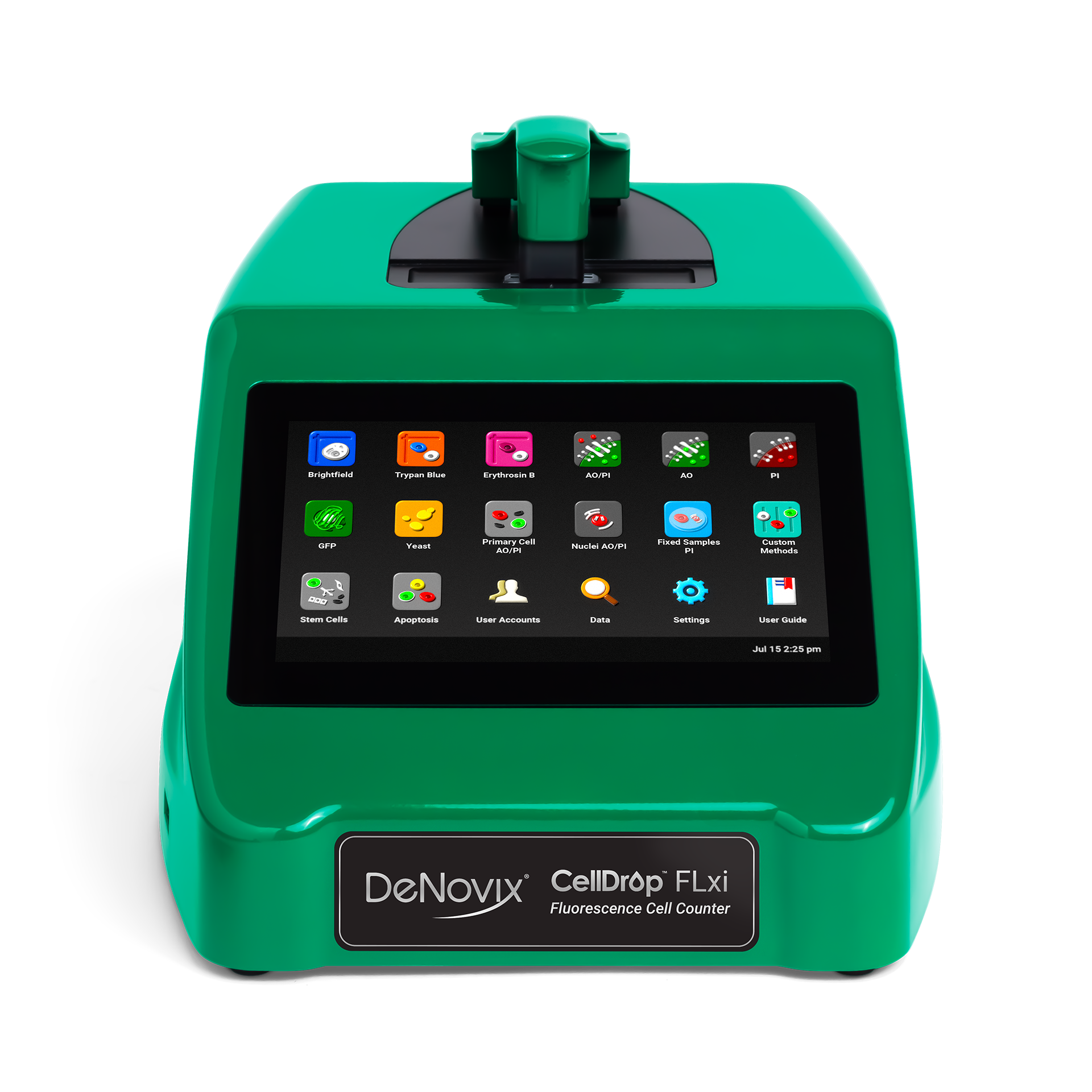

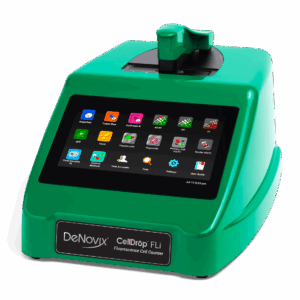

DeNovix CellDrop FL Cell Counter

Specifications

  • Dynamic Range: 7 x 102 – 2.5 x 107 cells/ml
  • Cell Size Range: 4 – 400 µm
  • Sample Volume: 5.0 µL @50 µm chamber height
  • Sample Volume: 10 µL @100 µm chamber height (standard)
  • Sample Volume: 40 µL @400 µm chamber height
  • Measurement Speed: Dual Fluorescence: 8.5 seconds @1 x 106 cell/mL and Brightfield- 3 seconds @1 x 106 cell/mL
  • Optical Modes: Dual Fluorescence, Single Fluorescence, Brightfield, Fluorescence + Brightfield
  • Sample Surfaces: Optical Sapphire
  • Brightfield Illumination: LED 530 nm
  • Fluorescence Illumination: LED 470 nm
  • Emission Filters: 530 nm +/- 25 nm and 645nm +/- 37 nm
  • Gesture Recognition: Multipoint touch, swipe, pinch
  • Display is 7″, 1280 x 800 high definition color display
  • Camera: Basler acA2040-55µm
  • Images: 2048 x 800 px (3.15 MB) with overlay capabilities
  • Focus: User-controlled onscreen coarse and fine adjustment
  • Detector: Sony IMX265
  • Processor: Nvidia Tegra K1 with Quad-core ARM Cortex-A15
  • Connectivity: WiFi, Ethernet, HDMi, USB
  • External Dimensions: (LxWxH) 37 x 21 x 18 cm
  • Warranty is 2 Years

Product Description

The award winning CellDrop from DeNovix has changed how labs count cells. You no longer need expensive slides. This will reduce your lab cost and save the environment! The CellDrop FL combines dual fluorescence optics with brightfield illumination to provide the widest feature set for current and future application needs.

Founded in 1967, D.A.I. Scientific has provided solutions for the following companies:

Manufacturers Trust D.A.I. Scientific

D.A.I. is proud to represent an innovative and award-winning company like DeNovix.

DeNovix was formed in 2012 by a group of scientists and engineers with proven track records of manufacturing innovative products. They are driven by their passion to support and facilitate the advances made in today's scientific community.

The award-winning instruments by DeNovix are powered by their EasyApps® software. Pre-configured apps ensure that workflows are optimized and simple to use.

Each DeNovix instrument has the ability for onboard data storage. If you have to export your data, you can email, download to a USB or even print.

Product Features

No Slides With DirectPipette™ Technology
Traditional plastic slides or glass hemocytometers are replaced by two permanent optical sapphire surfaces. These are positioned parallel to one another by a calibration-free, high-precision mechanism, forming a chamber of precisely defined height. 10µL of cell suspension is pipetted into the chamber, analyzed and simply wiped away with a dry laboratory wipe. The powerful live-view image allows instant verification that cleaning has been successful.
Accurate Across the Widest Range of Cell Size and Density
Using conventional counting methods, samples with high or low cell densities require time consuming dilution or concentration steps. The variable height chamber of the CellDrop Automated Cell Counters enables the most accurate counts over the widest cell densities – 7 x 102 – 2.5 x 107. Chamber height can also be adjusted to accommodate almost any cell with a diameter range of 4 to 400µm.
Easy-to-Learn, Powerful-to-Use
Designed by life scientists, the CellDrop EasyApps® Software exceeds the functionality of high cost cell counters while also delivering the ease-of-use of simpler systems. EasyApps and the high definition, 7″ touchscreen interface provides intuitive cell counting, from sample loading to data exporting in seconds. Pre-installed applications include a range of common applications for one-touch analysis of assays such as Brightfield, Trypan blue, AO/PI, GFP and Yeast and the ability to create custom methods.
